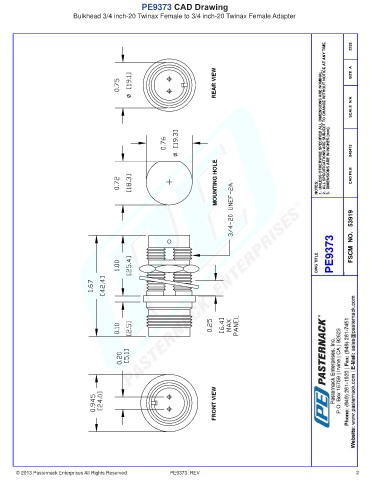

PE9373 CAD Drawing
Bulkhead 3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

REAR VIEW SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

MOUNTING HOLE NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 040413 CAD FILE

DWG TITLE PE9373 FSCM NO. 53919

FRONT VIEW

© 2013 Pasternack Enterprises All Rights Reserved PE9373 REV 2
