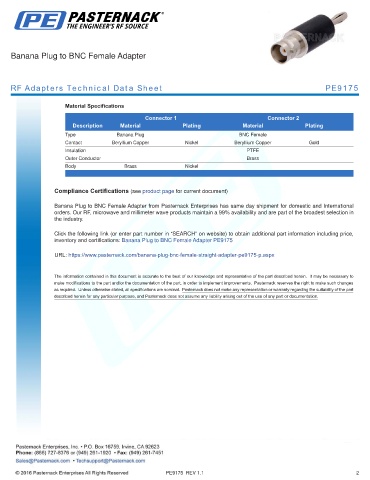

Banana Plug to BNC Female Adapter

RF Adapters Technical Data Sheet PE9175

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Banana Plug BNC Female
Contact Beryllium Copper Nickel Beryllium Copper Gold
Insulation PTFE
Outer Conductor Brass
Body Brass Nickel
. .

Compliance Certifications (see product page for current document)

Banana Plug to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Banana Plug to BNC Female Adapter PE9175

URL: https://www.pasternack.com/banana-plug-bnc-female-straight-adapter-pe9175-p.aspx

PE9175 REV 1.1 2
