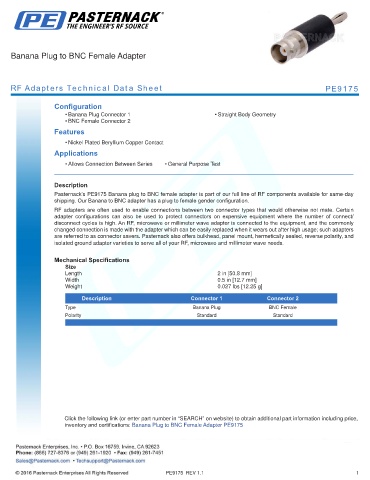

Banana Plug to BNC Female Adapter

RF Adapters Technical Data Sheet PE9175

Configuration
• Banana Plug Connector 1 • Straight Body Geometry
• BNC Female Connector 2
Features

• Nickel Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9175 Banana plug to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our Banana to BNC adapter has a plug to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 0.5 in [12.7 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type Banana Plug BNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Banana Plug to BNC Female Adapter PE9175

PE9175 REV 1.1 1
