3/4 inch-20 Twinax Tee Adapter Female-Male-Female

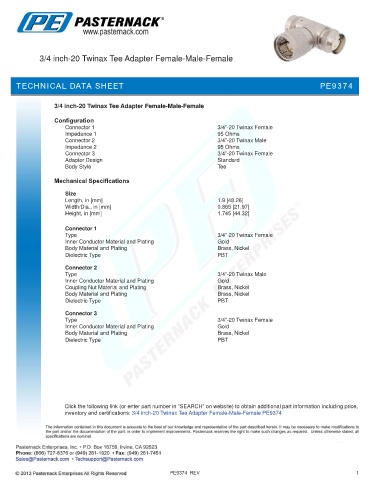

TECHNICAL DATA SHEET PE9374

3/4 inch-20 Twinax Tee Adapter Female-Male-Female

Configuration
Connector 1 3/4”-20 Twinax Female
Impedance 1 95 Ohms
Connector 2 3/4”-20 Twinax Male
Impedance 2 95 Ohms
Connector 3 3/4”-20 Twinax Female
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 1.9 [48.26]
Width/Dia., in [mm] 0.865 [21.97]
Height, in [mm] 1.745 [44.32]
.
Connector 1
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT
Connector 2
Type 3/4”-20 Twinax Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PBT

Connector 3
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Tee Adapter Female-Male-Female PE9374

PE9374 REV 1
