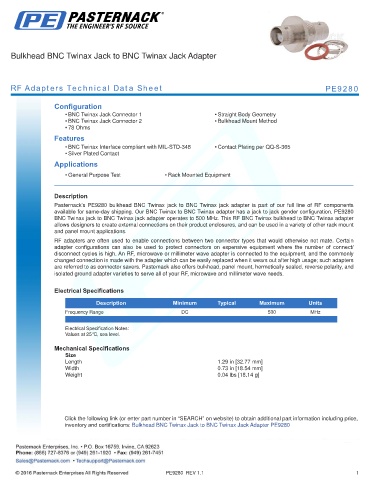

Bulkhead BNC Twinax Jack to BNC Twinax Jack Adapter

RF Adapters Technical Data Sheet PE9280

Configuration
• BNC Twinax Jack Connector 1 • Straight Body Geometry
• BNC Twinax Jack Connector 2 • Bulkhead Mount Method
• 78 Ohms
Features
• BNC Twinax Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9280 bulkhead BNC Twinax jack to BNC Twinax jack adapter is part of our full line of RF components
available for same-day shipping. Our BNC Twinax to BNC Twinax adapter has a jack to jack gender configuration. PE9280
BNC Twinax jack to BNC Twinax jack adapter operates to 500 MHz. This RF BNC Twinax bulkhead to BNC Twinax adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.29 in [32.77 mm]
Width 0.73 in [18.54 mm]
Weight 0.04 lbs [18.14 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead BNC Twinax Jack to BNC Twinax Jack Adapter PE9280

PE9280 REV 1.1 1
