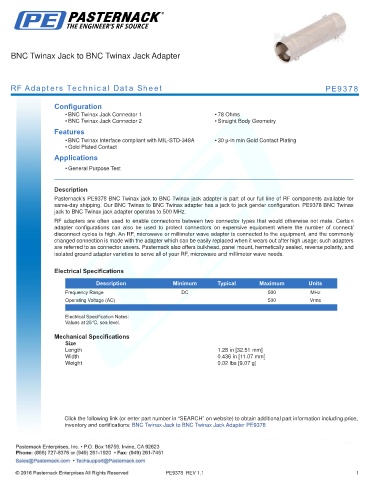

BNC Twinax Jack to BNC Twinax Jack Adapter

RF Adapters Technical Data Sheet PE9378

Configuration
• BNC Twinax Jack Connector 1 • 78 Ohms
• BNC Twinax Jack Connector 2 • Straight Body Geometry
Features
• BNC Twinax Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9378 BNC Twinax jack to BNC Twinax jack adapter is part of our full line of RF components available for
same-day shipping. Our BNC Twinax to BNC Twinax adapter has a jack to jack gender configuration. PE9378 BNC Twinax
jack to BNC Twinax jack adapter operates to 500 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
Operating Voltage (AC) 500 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.436 in [11.07 mm]
Weight 0.02 lbs [9.07 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Jack to BNC Twinax Jack Adapter PE9378

PE9378 REV 1.1 1
