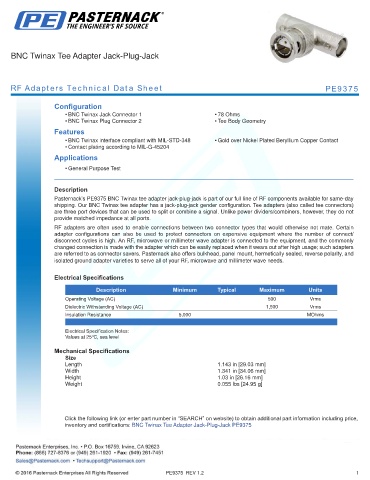

BNC Twinax Tee Adapter Jack-Plug-Jack

RF Adapters Technical Data Sheet PE9375

Configuration
• BNC Twinax Jack Connector 1 • 78 Ohms
• BNC Twinax Plug Connector 2 • Tee Body Geometry
Features
• BNC Twinax interface compliant with MIL-STD-348 • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE9375 BNC Twinax tee adapter jack-plug-jack is part of our full line of RF components available for same-day
shipping. Our BNC Twinax tee adapter has a jack-plug-jack gender configuration. Tee adapters (also called tee connectors)
are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not
provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.143 in [29.03 mm]
Width 1.341 in [34.06 mm]
Height 1.03 in [26.16 mm]
Weight 0.055 lbs [24.95 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Tee Adapter Jack-Plug-Jack PE9375

PE9375 REV 1.2 1
