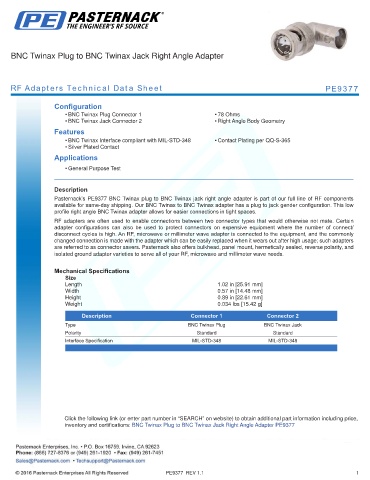

BNC Twinax Plug to BNC Twinax Jack Right Angle Adapter

RF Adapters Technical Data Sheet PE9377

Configuration
• BNC Twinax Plug Connector 1 • 78 Ohms
• BNC Twinax Jack Connector 2 • Right Angle Body Geometry
Features
• BNC Twinax Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9377 BNC Twinax plug to BNC Twinax jack right angle adapter is part of our full line of RF components
available for same-day shipping. Our BNC Twinax to BNC Twinax adapter has a plug to jack gender configuration. This low
profile right angle BNC Twinax adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.02 in [25.91 mm]
Width 0.57 in [14.48 mm]
Height 0.89 in [22.61 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type BNC Twinax Plug BNC Twinax Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug to BNC Twinax Jack Right Angle Adapter PE9377

PE9377 REV 1.1 1
