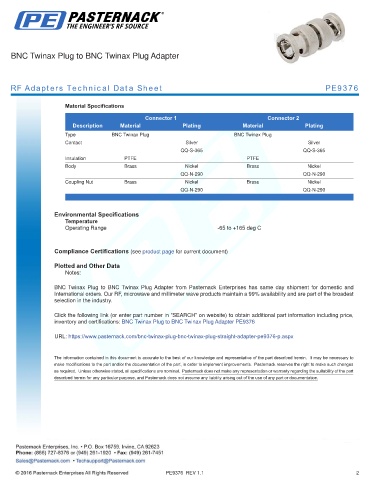

BNC Twinax Plug to BNC Twinax Plug Adapter

RF Adapters Technical Data Sheet PE9376

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Twinax Plug BNC Twinax Plug
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Coupling Nut Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
BNC Twinax Plug to BNC Twinax Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug to BNC Twinax Plug Adapter PE9376

URL: https://www.pasternack.com/bnc-twinax-plug-bnc-twinax-plug-straight-adapter-pe9376-p.aspx

PE9376 REV 1.1 2
