75 Ohm TNC Female to F Female Adapter

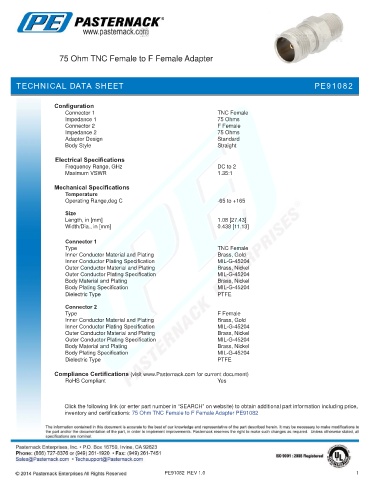

TECHNICAL DATA SHEET PE91082

Configuration
Connector 1 TNC Female
Impedance 1 75 Ohms
Connector 2 F Female
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 2
Maximum VSWR 1.35:1

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.08 [27.43]
Width/Dia., in [mm] 0.438 [11.13]
.
Connector 1
Type TNC Female
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Brass, Nickel
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Body Plating Specification MIL-G-45204
Dielectric Type PTFE
Connector 2
Type F Female
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Brass, Nickel
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Body Plating Specification MIL-G-45204
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female to F Female Adapter PE91082
