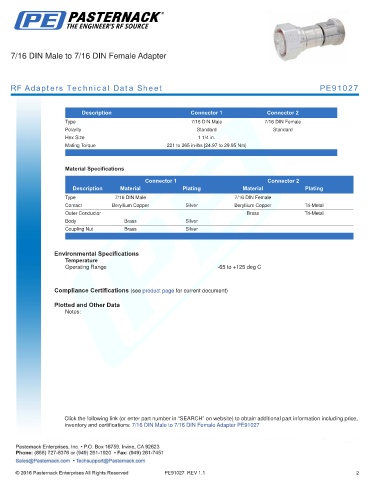

7/16 DIN Male to 7/16 DIN Female Adapter

RF Adapters Technical Data Sheet PE91027

.
Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Female
Polarity Standard Standard
Hex Size 1 1/4 in.
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male 7/16 DIN Female
Contact Beryllium Copper Silver Beryllium Copper Tri-Metal
Outer Conductor Brass Tri-Metal
Body Brass Silver
Coupling Nut Brass Silver
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Female Adapter PE91027

PE91027 REV 1.1 2
