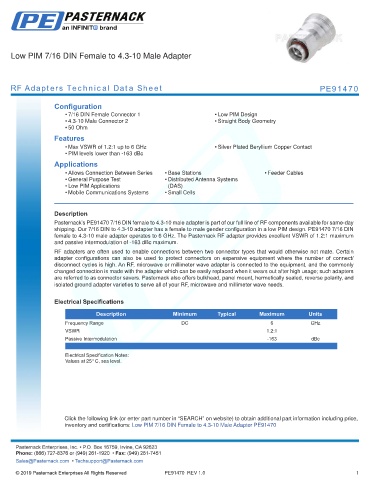

Low PIM 7/16 DIN Female to 4.3-10 Male Adapter

RF Adapters Technical Data Sheet PE91470

Configuration
• 7/16 DIN Female Connector 1 • Low PIM Design
• 4.3-10 Male Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.2:1 up to 6 GHz • Silver Plated Beryllium Copper Contact
• PIM levels lower than -163 dBc
Applications
• Allows Connection Between Series • Base Stations • Feeder Cables
• General Purpose Test • Distributed Antenna Systems
• Low PIM Applications (DAS)
• Mobile Communications Systems • Small Cells
.
Description
Pasternack’s PE91470 7/16 DIN female to 4.3-10 male adapter is part of our full line of RF components available for same-day
shipping. Our 7/16 DIN to 4.3-10 adapter has a female to male gender configuration in a low PIM design. PE91470 7/16 DIN
female to 4.3-10 male adapter operates to 6 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum
and passive intermodulation of -163 dBc maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.2:1
Passive Intermodulation -163 dBc
. .
Electrical Specification Notes:
Values at 25° C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 7/16 DIN Female to 4.3-10 Male Adapter PE91470
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91470 REV 1.0 1
