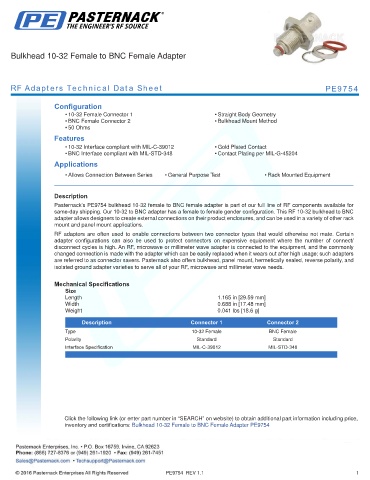

Bulkhead 10-32 Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9754

Configuration
• 10-32 Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• 10-32 Interface compliant with MIL-C-39012 • Gold Plated Contact
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9754 bulkhead 10-32 female to BNC female adapter is part of our full line of RF components available for
same-day shipping. Our 10-32 to BNC adapter has a female to female gender configuration. This RF 10-32 bulkhead to BNC
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.165 in [29.59 mm]
Width 0.688 in [17.48 mm]
Weight 0.041 lbs [18.6 g]
.
Description Connector 1 Connector 2
Type 10-32 Female BNC Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 10-32 Female to BNC Female Adapter PE9754

PE9754 REV 1.1 1
