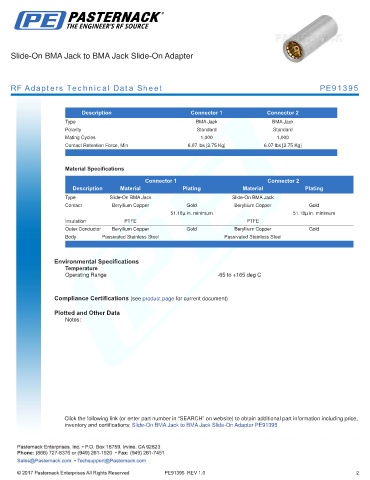

Slide-On BMA Jack to BMA Jack Slide-On Adapter

RF Adapters Technical Data Sheet PE91395

.
Description Connector 1 Connector 2
Type BMA Jack BMA Jack
Polarity Standard Standard
Mating Cycles 1,000 1,000
Contact Retention Force, Min 6.07 lbs [2.75 Kg] 6.07 lbs [2.75 Kg]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Slide-On BMA Jack Slide-On BMA Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
51.18µ in. minimum 51.18µ in. minimum
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack to BMA Jack Slide-On Adapter PE91395

PE91395 REV 1.0 2
