10 dB Fixed Attenuator, TNC Male to TNC Female Black Anodized
Aluminum Heatsink Body Rated to 25 Watts Up to 18 GHz

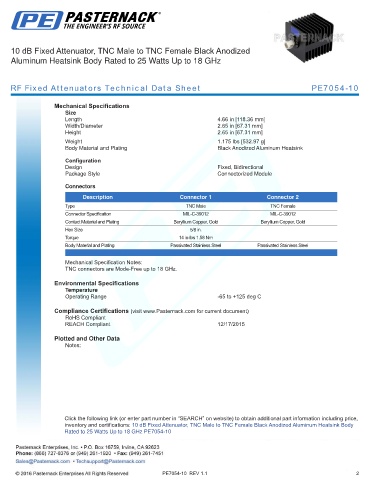

RF Fixed Attenuators Technical Data Sheet PE7054-10

Mechanical Specifications
Size
Length 4.66 in [118.36 mm]
Width/Diameter 2.65 in [67.31 mm]
Height 2.65 in [67.31 mm]
.
Weight 1.175 lbs [532.97 g]
Body Material and Plating Black Anodized Aluminum Heatsink
Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module

Connectors
Description Connector 1 Connector 2
Type TNC Male TNC Female
Connector Specification MIL-C-39012 MIL-C-39012
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Hex Size 5/8 in.
Torque 14 in-lbs 1.58 Nm
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.
Mechanical Specification Notes:
TNC connectors are Mode-Free up to 18 GHz.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 10 dB Fixed Attenuator, TNC Male to TNC Female Black Anodized Aluminum Heatsink Body
Rated to 25 Watts Up to 18 GHz PE7054-10
