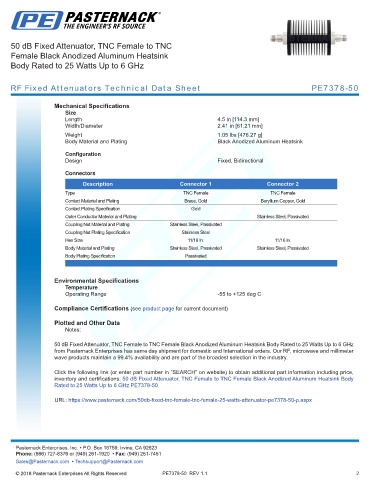

50 dB Fixed Attenuator, TNC Female to TNC
Female Black Anodized Aluminum Heatsink
Body Rated to 25 Watts Up to 6 GHz

RF Fixed Attenuators Technical Data Sheet PE7378-50

Mechanical Specifications
Size
Length 4.5 in [114.3 mm]
Width/Diameter 2.41 in [61.21 mm]
.
Weight 1.05 lbs [476.27 g]
Body Material and Plating Black Anodized Aluminum Heatsink

Configuration
Design Fixed, Bidirectional

Connectors
Description Connector 1 Connector 2
Type TNC Female TNC Female
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification Gold
Outer Conductor Material and Plating Stainless Steel, Passivated
Coupling Nut Material and Plating Stainless Steel, Passivated
Coupling Nut Plating Specification Stainless Steel
Hex Size 11/16 In. 11/16 In.
Body Material and Plating Stainless Steel, Passivated Stainless Steel, Passivated
Body Plating Specification Passivated
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

50 dB Fixed Attenuator, TNC Female to TNC Female Black Anodized Aluminum Heatsink Body Rated to 25 Watts Up to 6 GHz
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 dB Fixed Attenuator, TNC Female to TNC Female Black Anodized Aluminum Heatsink Body
Rated to 25 Watts Up to 6 GHz PE7378-50

URL: https://www.pasternack.com/50db-fixed-tnc-female-tnc-female-25-watts-attenuator-pe7378-50-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE7378-50 REV 1.1 2
