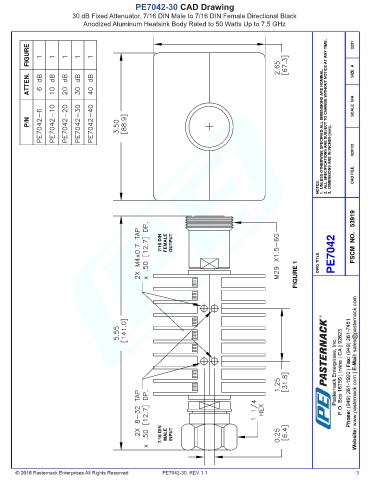

PE7042-30 CAD Drawing
30 dB Fixed Attenuator, 7/16 DIN Male to 7/16 DIN Female Directional Black
Anodized Aluminum Heatsink Body Rated to 50 Watts Up to 7.5 GHz
FIGURE 2231
ATTEN. SIZE A
SCALE N/A
P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm]. 020113
NOTES: CAD FILE
7/16 DIN FEMALE OUTPUT PE7042 FSCM NO. 53919
FIGURE 1 DWG TITLE
7/16 DIN MALE INPUT
PE7042-30 REV 1.1 3
