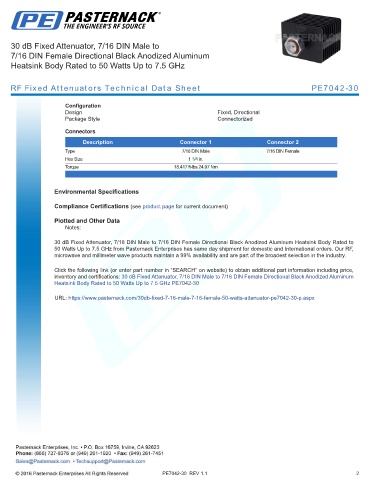

Page 1518 - RF Attenuator Datasheets

30 dB Fixed Attenuator, 7/16 DIN Male to
7/16 DIN Female Directional Black Anodized Aluminum
Heatsink Body Rated to 50 Watts Up to 7.5 GHz

RF Fixed Attenuators Technical Data Sheet PE7042-30

Configuration
Design Fixed, Directional
Package Style Connectorized
Connectors

Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Female
Hex Size 1 1/4 in.
Torque 18.417 ft-lbs 24.97 Nm
.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

30 dB Fixed Attenuator, 7/16 DIN Male to 7/16 DIN Female Directional Black Anodized Aluminum Heatsink Body Rated to
50 Watts Up to 7.5 GHz from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF,
microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, 7/16 DIN Male to 7/16 DIN Female Directional Black Anodized Aluminum
Heatsink Body Rated to 50 Watts Up to 7.5 GHz PE7042-30

URL: https://www.pasternack.com/30db-fixed-7-16-male-7-16-female-50-watts-attenuator-pe7042-30-p.aspx

PE7042-30 REV 1.1 2
