40 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Directional Rated To 50 Watts Up To 7.5 GHz

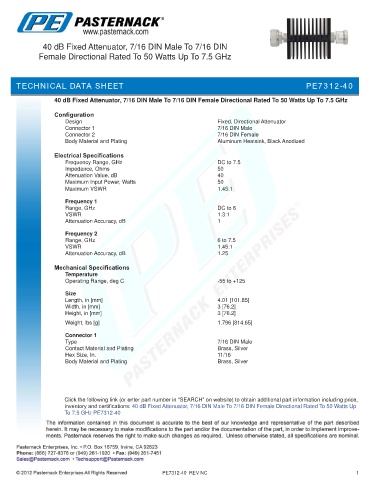

TECHNICAL DATA SHEET PE7312-40

40 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Rated To 50 Watts Up To 7.5 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 7/16 DIN Male
Connector 2 7/16 DIN Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 7.5
Impedance, Ohms 50
Attenuation Value, dB 40
Maximum Input Power, Watts 50
Maximum VSWR 1.45:1

Frequency 1
Range, GHz DC to 6
VSWR 1.3:1
Attenuation Accuracy, dB 1
Frequency 2
Range, GHz 6 to 7.5
VSWR 1.45:1
Attenuation Accuracy, dB 1.25
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 4.01 [101.85]
Width, in [mm] 3 [76.2]
Height, in [mm] 3 [76.2]
.
Weight, lbs [g] 1.796 [814.65]
Connector 1
Type 7/16 DIN Male
Contact Material and Plating Brass, Silver
Hex Size, In. 11/16
Body Material and Plating Brass, Silver

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 40 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Rated To 50 Watts Up
To 7.5 GHz PE7312-40

PE7312-40 REV NC 1
