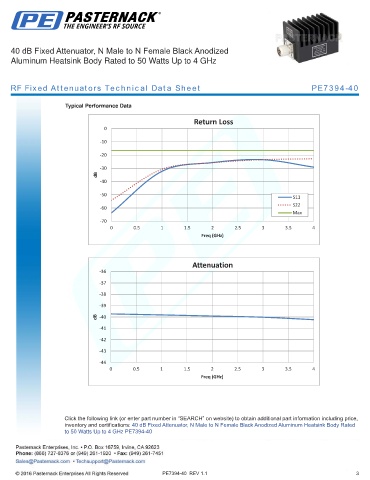

40 dB Fixed Attenuator, N Male to N Female Black Anodized
Aluminum Heatsink Body Rated to 50 Watts Up to 4 GHz

RF Fixed Attenuators Technical Data Sheet PE7394-40

Typical Performance Data

Return Loss
0
-10

-20

-30
dB
-40

-50 S11
-60 S22
Max
-70
0 0.5 1 1.5 2 2.5 3 3.5 4
Freq (GHz)

Attenuation
-36

-37
-38
-39

dB -40
-41
-42

-43
-44
0 0.5 1 1.5 2 2.5 3 3.5 4
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 40 dB Fixed Attenuator, N Male to N Female Black Anodized Aluminum Heatsink Body Rated
to 50 Watts Up to 4 GHz PE7394-40

PE7394-40 REV 1.1 3
