30 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Directional Aluminum Heatsink Black Anodized
Body Rated To 100 Watts Up To 1.5 GHz

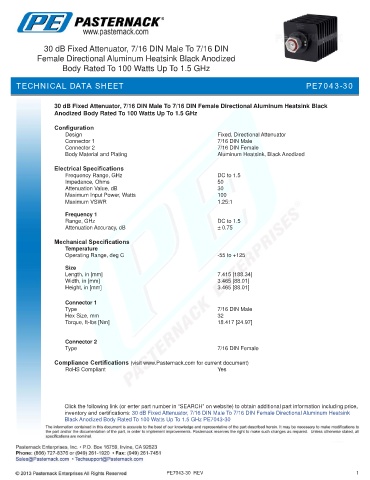

TECHNICAL DATA SHEET PE7043-30

30 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Aluminum Heatsink Black
Anodized Body Rated To 100 Watts Up To 1.5 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 7/16 DIN Male
Connector 2 7/16 DIN Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 1.5
Impedance, Ohms 50
Attenuation Value, dB 30
Maximum Input Power, Watts 100
Maximum VSWR 1.25:1

Frequency 1
Range, GHz DC to 1.5
Attenuation Accuracy, dB ± 0.75

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125
Size
Length, in [mm] 7.415 [188.34]
Width, in [mm] 3.465 [88.01]
Height, in [mm] 3.465 [88.01]
.
Connector 1
Type 7/16 DIN Male
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.417 [24.97]

Connector 2
Type 7/16 DIN Female

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Aluminum Heatsink
Black Anodized Body Rated To 100 Watts Up To 1.5 GHz PE7043-30

PE7043-30 REV 1
