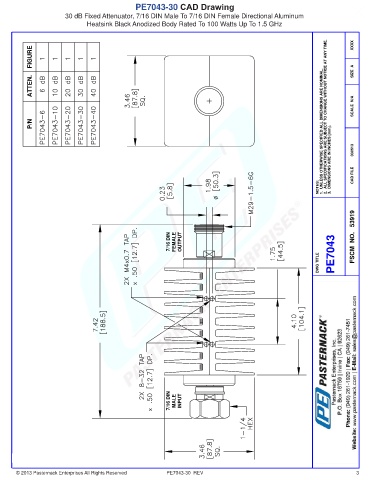

PE7043-30 CAD Drawing
30 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Aluminum
Heatsink Black Anodized Body Rated To 100 Watts Up To 1.5 GHz

XXXX
FIGURE SIZE A

ATTEN.

SCALE N/A

P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm]. 030513

NOTES: CAD FILE

7/16 DIN FEMALE OUTPUT FSCM NO. 53919

DWG TITLE PE7043

7/16 DIN MALE INPUT
