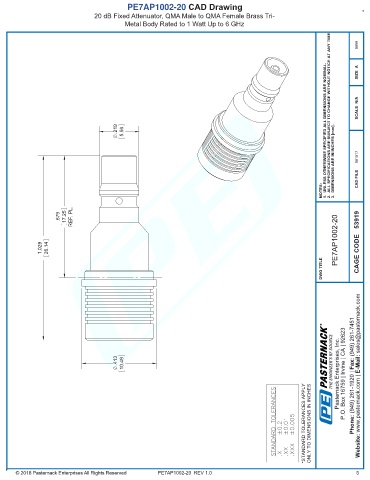

PE7AP1002-20 CAD Drawing
20 dB Fixed Attenuator, QMA Male to QMA Female Brass Tri-
Metal Body Rated to 1 Watt Up to 6 GHz
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
9999

SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 081017
.219 5.56 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

NOTES: CAD FILE

.679 17.25 REF. PL.

PE7AP1002-20 CAGE CODE 53919
1.029 26.14

DWG TITLE

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.413
10.49

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE7AP1002-20 REV 1.0 5
