10 dB DC Bias Attenuator, N Male To N Female Passivated
Stainless Steel Body Rated To 2 Watts From 500 MHz To 2 GHz

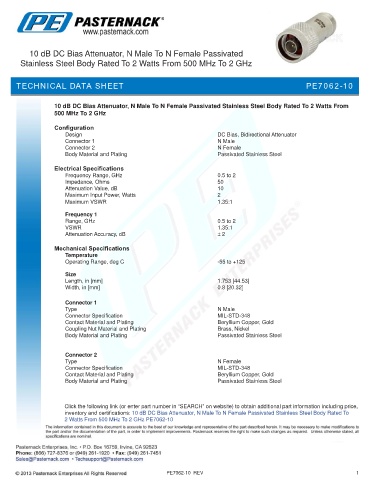

TECHNICAL DATA SHEET PE7062-10

10 dB DC Bias Attenuator, N Male To N Female Passivated Stainless Steel Body Rated To 2 Watts From
500 MHz To 2 GHz

Configuration
Design DC Bias, Bidirectional Attenuator
Connector 1 N Male
Connector 2 N Female
Body Material and Plating Passivated Stainless Steel

Electrical Specifications
Frequency Range, GHz 0.5 to 2
Impedance, Ohms 50
Attenuation Value, dB 10
Maximum Input Power, Watts 2
Maximum VSWR 1.35:1

Frequency 1
Range, GHz 0.5 to 2
VSWR 1.35:1
Attenuation Accuracy, dB ± 2
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 1.753 [44.53]
Width, in [mm] 0.8 [20.32]
.
Connector 1
Type N Male
Connector Specification MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Passivated Stainless Steel

Connector 2
Type N Female
Connector Specification MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 10 dB DC Bias Attenuator, N Male To N Female Passivated Stainless Steel Body Rated To
2 Watts From 500 MHz To 2 GHz PE7062-10

PE7062-10 REV 1
