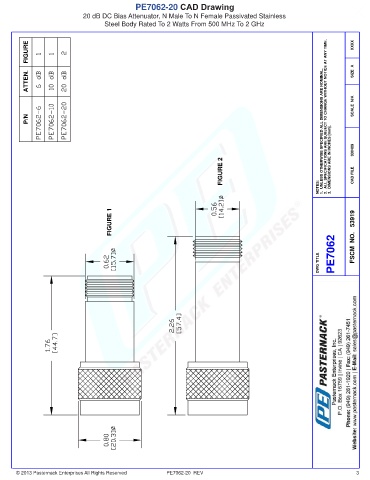

PE7062-20 CAD Drawing
20 dB DC Bias Attenuator, N Male To N Female Passivated Stainless
Steel Body Rated To 2 Watts From 500 MHz To 2 GHz
FIGURE XXXX
ATTEN. SIZE A
SCALE N/A
P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
FIGURE 2 3. DIMENSIONS ARE IN INCHES [mm]. 030409 CAD FILE
NOTES:
FIGURE 1 FSCM NO. 53919
DWG TITLE PE7062
© 2013 Pasternack Enterprises All Rights Reserved PE7062-20 REV 3
