30 dB With 5 Bit Programmable TTL Controlled
Attenuator, 2.92mm Female To 2.92mm Female,
1 dB Steps From 100 MHz To 18 GHz

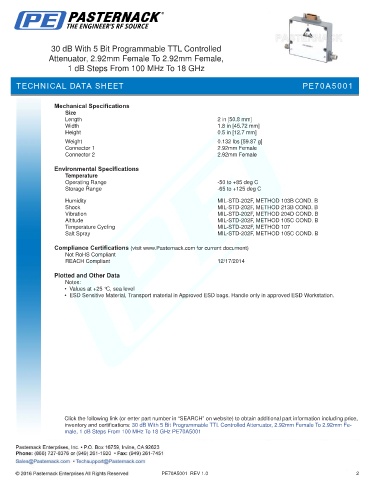

TECHNICAL DATA SHEET PE70A5001

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.8 in [45.72 mm]
Height 0.5 in [12.7 mm]
.
Weight 0.132 lbs [59.87 g]
Connector 1 2.92mm Female
Connector 2 2.92mm Female

Environmental Specifications
Temperature
Operating Range -50 to +85 deg C
Storage Range -65 to +125 deg C

Humidity MIL-STD-202F, METHOD 103B COND. B
Shock MIL-STD-202F, METHOD 213B COND. B
Vibration MIL-STD-202F, METHOD 204D COND. B
Altitude MIL-STD-202F, METHOD 105C COND. B
Temperature Cycling MIL-STD-202F, METHOD 107
Salt Spray MIL-STD-202F, METHOD 105C COND. B

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant 12/17/2014

Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Fe-
male, 1 dB Steps From 100 MHz To 18 GHz PE70A5001

PE70A5001 REV 1.0 2
