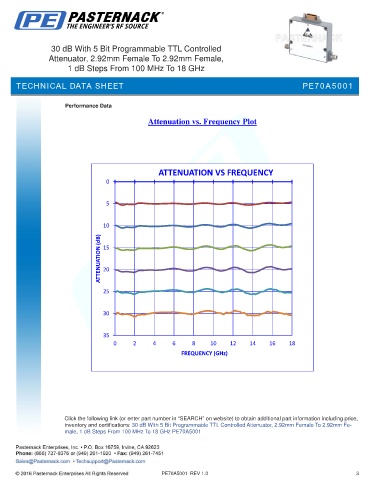

30 dB With 5 Bit Programmable TTL Controlled
Attenuator, 2.92mm Female To 2.92mm Female,
1 dB Steps From 100 MHz To 18 GHz
TECHNICAL DATA SHEET PE70A5001
Performance Data
Attenuation vs. Frequency Plot
ATTENUATION VS FREQUENCY
0
5
10
ATTENUATION (dB) 15
20
25
30
35
0 2 4 6 8 10 12 14 16 18
FREQUENCY (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Fe-
male, 1 dB Steps From 100 MHz To 18 GHz PE70A5001
