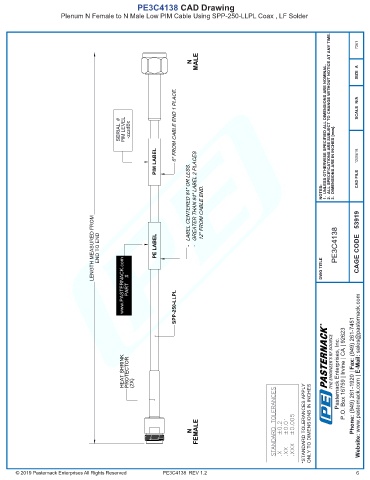

PE3C4138 CAD Drawing
Plenum N Female to N Male Low PIM Cable Using SPP-250-LLPL Coax , LF Solder
7361
MALE
N
SIZE A
SERIAL # PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
PIM LABEL - GREATER THAN 84" LABEL 2 PLACES NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 12/05/18 CAD FILE
LENGTH MEASURED FROM END TO END PE LABEL - LABEL CENTERED 84" OR LESS. 12" FROM CABLE END. PE3C4138 CAGE CODE 53919
www.PASTERNACK.com PART # DWG TITLE
SPP-250-LLPL
R
P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.
HEAT SHRINK PROTECTOR (2X) Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.XXX ±0.005
.XX ±0.01
.X ±0.2
N FEMALE -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C4138 REV 1.2 6
