N Female 4 Hole Flange to MMCX Plug
Right Angle Cable Using LMR-100 Coax

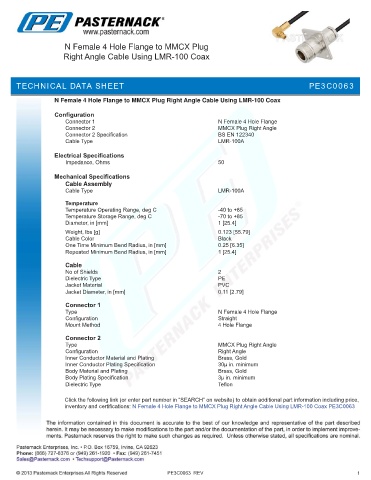

TECHNICAL D PE3C0063
TECHNICAL DATA SHEETATA SHEET

N Female 4 Hole Flange to MMCX Plug Right Angle Cable Using LMR-100 Coax

Configuration
Connector 1 N Female 4 Hole Flange
Connector 2 MMCX Plug Right Angle
Connector 2 Specification BS EN 122340
Cable Type LMR-100A

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-100A

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.123 [55.79]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.25 [6.35]
Repeated Minimum Bend Radius, in [mm] 1 [25.4]

Cable
No of Shields 2
Dielectric Type PE
Jacket Material PVC
Jacket Diameter, in [mm] 0.11 [2.79]

Connector 1
Type N Female 4 Hole Flange
Configuration Straight
Mount Method 4 Hole Flange

Connector 2
Type MMCX Plug Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ in. minimum
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female 4 Hole Flange to MMCX Plug Right Angle Cable Using LMR-100 Coax PE3C0063

PE3C0063 REV 1
