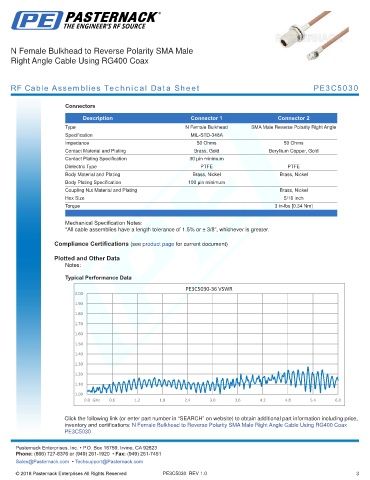

N Female Bulkhead to Reverse Polarity SMA Male
Right Angle Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C5030

Connectors

Description Connector 1 Connector 2
Type N Female Bulkhead SMA Male Reverse Polarity Right Angle
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification 30 µin minimum
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel
Hex Size 5/16 inch
Torque 3 in-lbs [0.34 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Typical Performance Data

PE3C5030-36 VSWR
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30
1.20

1.10
1.00
0.0 GHz 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to Reverse Polarity SMA Male Right Angle Cable Using RG400 Coax
PE3C5030 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5030 REV 1.0 3
