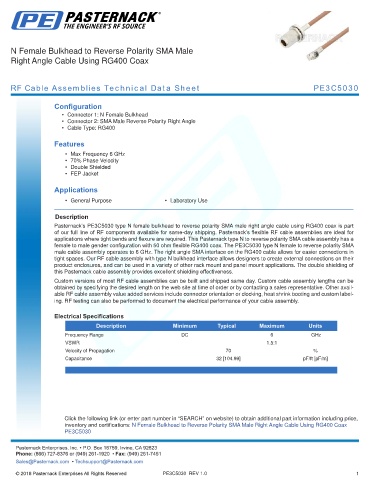

N Female Bulkhead to Reverse Polarity SMA Male
Right Angle Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C5030

Configuration
• Connector 1: N Female Bulkhead
• Connector 2: SMA Male Reverse Polarity Right Angle
• Cable Type: RG400

Features
• Max Frequency 6 GHz
• 70% Phase Velocity
• Double Shielded
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C5030 type N female bulkhead to reverse polarity SMA male right angle cable using RG400 coax is part
of our full line of RF components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for
applications where tight bends and flexure are required. This Pasternack type N to reverse polarity SMA cable assembly has a
female to male gender configuration with 50 ohm flexible RG400 coax. The PE3C5030 type N female to reverse polarity SMA
male cable assembly operates to 6 GHz. The right angle SMA interface on the RG400 cable allows for easier connections in
tight spaces. Our RF cable assembly with type N bulkhead interface allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications. The double shielding of
this Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Velocity of Propagation 70 %
Capacitance 32 [104.99] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to Reverse Polarity SMA Male Right Angle Cable Using RG400 Coax
PE3C5030 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5030 REV 1.0 1
