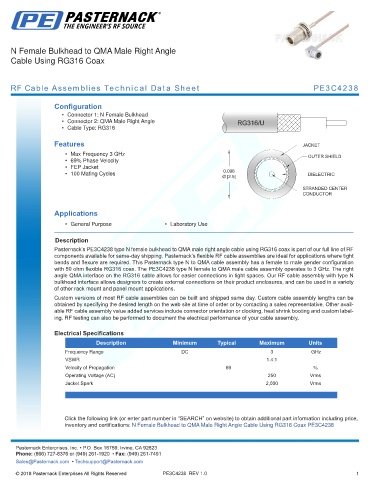

N Female Bulkhead to QMA Male Right Angle
Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4238

Configuration
• Connector 1: N Female Bulkhead
• Connector 2: QMA Male Right Angle
• Cable Type: RG316

Features
• Max Frequency 3 GHz
• 69% Phase Velocity
• FEP Jacket
• 100 Mating Cycles

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C4238 type N female bulkhead to QMA male right angle cable using RG316 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack type N to QMA cable assembly has a female to male gender configuration
with 50 ohm flexible RG316 coax. The PE3C4238 type N female to QMA male cable assembly operates to 3 GHz. The right
angle QMA interface on the RG316 cable allows for easier connections in tight spaces. Our RF cable assembly with type N
bulkhead interface allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Velocity of Propagation 69 %
Operating Voltage (AC) 250 Vrms
Jacket Spark 2,000 Vrms

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to QMA Male Right Angle Cable Using RG316 Coax PE3C4238
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4238 REV 1.0 1
