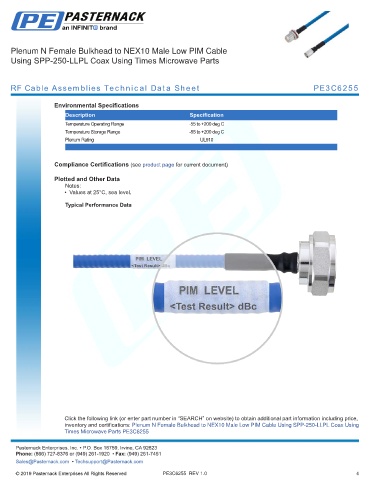

Plenum N Female Bulkhead to NEX10 Male Low PIM Cable
Using SPP-250-LLPL Coax Using Times Microwave Parts
RF Cable Assemblies Technical Data Sheet PE3C6255
Environmental Specifications
Description Specification
Temperature Operating Range -55 to +200 deg C
Temperature Storage Range -55 to +200 deg C
Plenum Rating UL910
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Typical Performance Data
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum N Female Bulkhead to NEX10 Male Low PIM Cable Using SPP-250-LLPL Coax Using
Times Microwave Parts PE3C6255 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
