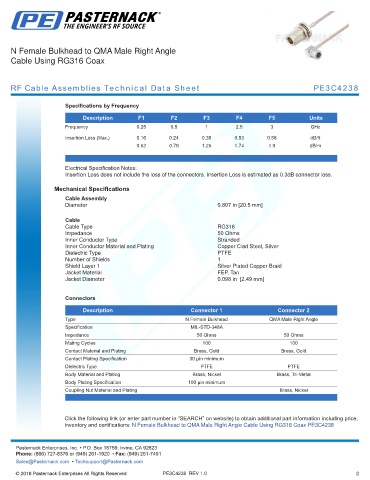

N Female Bulkhead to QMA Male Right Angle
Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4238

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 3 GHz
Insertion Loss (Max.) 0.16 0.24 0.38 0.53 0.58 dB/ft
0.52 0.79 1.25 1.74 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.3dB connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.807 in [20.5 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Connectors
Description Connector 1 Connector 2
Type N Female Bulkhead QMA Male Right Angle
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Mating Cycles 100 100
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30 µin minimum
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Tri-Metal
Body Plating Specification 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to QMA Male Right Angle Cable Using RG316 Coax PE3C4238
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4238 REV 1.0 2
