N Female Bulkhead to QMA Male Right Angle
Cable Using RG316 Coax

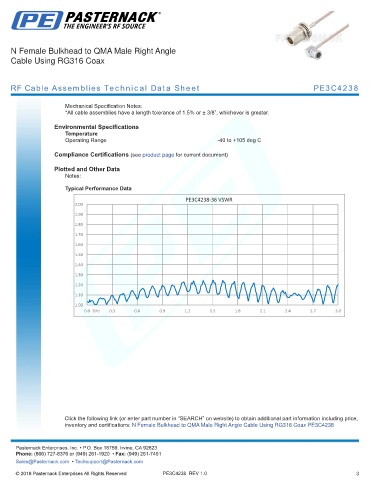

RF Cable Assemblies Technical Data Sheet PE3C4238

Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +105 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
Typical Performance Data
PE3C4238-36 VSWR
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to QMA Male Right Angle Cable Using RG316 Coax PE3C4238
-
