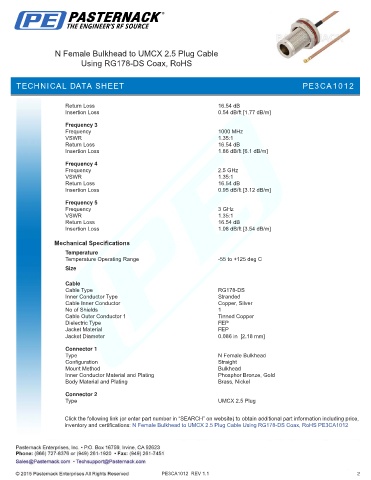

N Female Bulkhead to UMCX 2.5 Plug Cable
Using RG178-DS Coax, RoHS
TECHNICAL D PE3CA1012
TECHNICAL DATA SHEETATA SHEET
Return Loss 16.54 dB
Insertion Loss 0.54 dB/ft [1.77 dB/m]
Frequency 3
Frequency 1000 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.86 dB/ft [6.1 dB/m]
Frequency 4
Frequency 2.5 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 0.95 dB/ft [3.12 dB/m]
Frequency 5
Frequency 3 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.08 dB/ft [3.54 dB/m]
Mechanical Specifications
Temperature
Temperature Operating Range -55 to +125 deg C
Size
.
Cable
Cable Type RG178-DS
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Silver
No of Shields 1
Cable Outer Conductor 1 Tinned Copper
Dielectric Type FEP
Jacket Material FEP
Jacket Diameter 0.086 in [2.18 mm]
Connector 1
Type N Female Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Connector 2
Type UMCX 2.5 Plug
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to UMCX 2.5 Plug Cable Using RG178-DS Coax, RoHS PE3CA1012
PE3CA1012 REV 1.1 2
