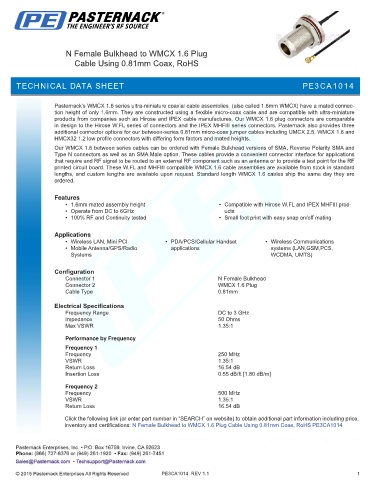

N Female Bulkhead to WMCX 1.6 Plug
Cable Using 0.81mm Coax, RoHS

TECHNICAL D PE3CA1014
TECHNICAL DATA SHEETATA SHEET

Pasternack’s WMCX 1.6 series ultra-miniature coaxial cable assemblies (also called 1.6mm WMCX) have a mated connec-
tion height of only 1.6mm. They are constructed using a flexible micro-coax cable and are compatible with ultra-miniature
products from companies such as Hirose and IPEX cable manufactures. Our WMCX 1.6 plug connectors are comparable
in design to the Hirose W.FL series of connectors and the IPEX MHFIII series connectors. Pasternack also provides three
additional connector options for our between-series 0.81mm micro-coax jumper cables including UMCX 2.5, WMCX 1.6 and
HMCX32 1.2 low profile connectors with differing form factors and mated heights.
Our WMCX 1.6 between series cables can be ordered with Female Bulkhead versions of SMA, Reverse Polarity SMA and
Type N connectors as well as an SMA Male option. These cables provide a convenient connector interface for applications
that require and RF signal to be routed to an external RF component such as an antenna or to provide a test point for the RF
printed circuit board. These W.FL and MHFIII compatible WMCX 1.6 cable assemblies are available from stock in standard
lengths, and custom lengths are available upon request. Standard length WMCX 1.6 cables ship the same day they are
ordered.

Features
• 1.6mm mated assembly height • Compatible with Hirose W.FL and IPEX MHFIII prod-
• Operate from DC to 6GHz ucts
• 100% RF and Continuity tested • Small foot print with easy snap on/off mating

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems (LAN,GSM,PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 N Female Bulkhead
Connector 2 WMCX 1.6 Plug
Cable Type 0.81mm

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Max VSWR 1.35:1

Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 0.55 dB/ft [1.80 dB/m]

Frequency 2
Frequency 500 MHz
VSWR 1.35:1
Return Loss 16.54 dB

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to WMCX 1.6 Plug Cable Using 0.81mm Coax, RoHS PE3CA1014

PE3CA1014 REV 1.1 1
