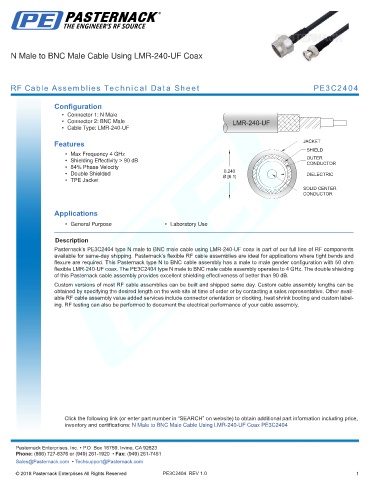

N Male to BNC Male Cable Using LMR-240-UF Coax

RF Cable Assemblies Technical Data Sheet PE3C2404

Configuration
• Connector 1: N Male
• Connector 2: BNC Male
• Cable Type: LMR-240-UF

Features
• Max Frequency 4 GHz
• Shielding Effectivity > 90 dB
• 84% Phase Velocity
• Double Shielded
• TPE Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C2404 type N male to BNC male cable using LMR-240-UF coax is part of our full line of RF components
available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and
flexure are required. This Pasternack type N to BNC cable assembly has a male to male gender configuration with 50 ohm
flexible LMR-240-UF coax. The PE3C2404 type N male to BNC male cable assembly operates to 4 GHz. The double shielding
of this Pasternack cable assembly provides excellent shielding effectiveness of better than 90 dB.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to BNC Male Cable Using LMR-240-UF Coax PE3C2404
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2404 REV 1.0 1
