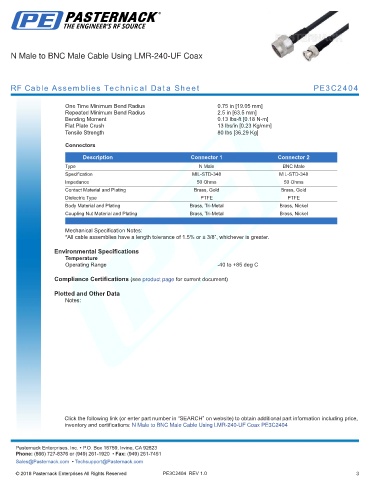

N Male to BNC Male Cable Using LMR-240-UF Coax

RF Cable Assemblies Technical Data Sheet PE3C2404

One Time Minimum Bend Radius 0.75 in [19.05 mm]
Repeated Minimum Bend Radius 2.5 in [63.5 mm]
Bending Moment 0.13 lbs-ft [0.18 N-m]
Flat Plate Crush 13 lbs/in [0.23 Kg/mm]
Tensile Strength 80 lbs [36.29 Kg]

Connectors

Description Connector 1 Connector 2
Type N Male BNC Male
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Nickel
Coupling Nut Material and Plating Brass, Tri-Metal Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to BNC Male Cable Using LMR-240-UF Coax PE3C2404
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2404 REV 1.0 3
