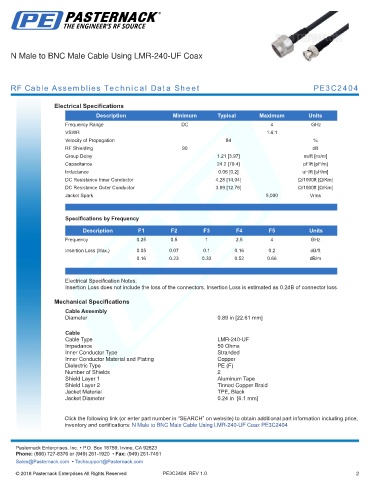

N Male to BNC Male Cable Using LMR-240-UF Coax

RF Cable Assemblies Technical Data Sheet PE3C2404

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.6:1
Velocity of Propagation 84 %
RF Shielding 90 dB
Group Delay 1.21 [3.97] ns/ft [ns/m]
Capacitance 24.2 [79.4] pF/ft [pF/m]
Inductance 0.06 [0.2] uH/ft [uH/m]
DC Resistance Inner Conductor 4.28 [14.04] Ω/1000ft [Ω/Km]
DC Resistance Outer Conductor 3.89 [12.76] Ω/1000ft [Ω/Km]
Jacket Spark 5,000 Vrms
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 4 GHz
Insertion Loss (Max.) 0.05 0.07 0.1 0.16 0.2 dB/ft
0.16 0.23 0.33 0.52 0.66 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.2dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.89 in [22.61 mm]
.
Cable
Cable Type LMR-240-UF
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper
Dielectric Type PE (F)
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid
Jacket Material TPE, Black
Jacket Diameter 0.24 in [6.1 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to BNC Male Cable Using LMR-240-UF Coax PE3C2404
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2404 REV 1.0 2
