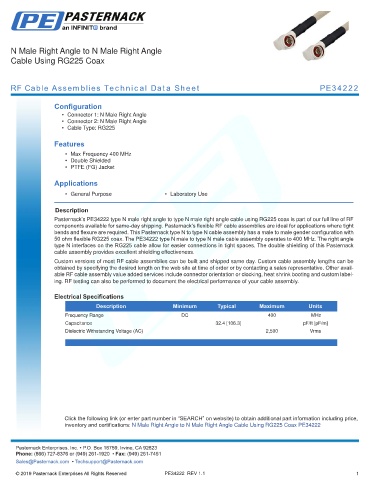

N Male Right Angle to N Male Right Angle
Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34222

Configuration
• Connector 1: N Male Right Angle
• Connector 2: N Male Right Angle
• Cable Type: RG225

Features
• Max Frequency 400 MHz
• Double Shielded
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34222 type N male right angle to type N male right angle cable using RG225 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack type N to type N cable assembly has a male to male gender configuration with
50 ohm flexible RG225 coax. The PE34222 type N male to type N male cable assembly operates to 400 MHz. The right angle
type N interfaces on the RG225 cable allow for easier connections in tight spaces. The double shielding of this Pasternack
cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
Capacitance 32.4 [106.3] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using RG225 Coax PE34222
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34222 REV 1.1 1
