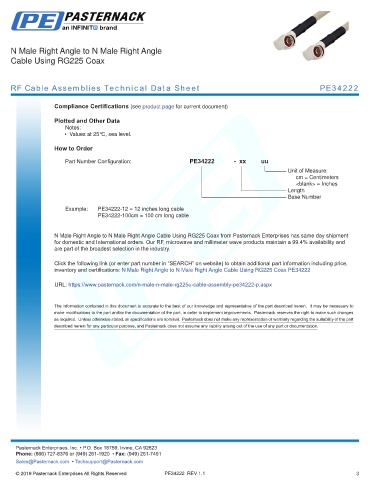

N Male Right Angle to N Male Right Angle
Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34222

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

How to Order
Part Number Configuration: PE34222 - xx uu
| | | | | Unit of Measure:
|
| <blank> = Inches
cm = Centimeters
| | Length
Base Number
Example: PE34222-12 = 12 inches long cable
PE34222-100cm = 100 cm long cable

N Male Right Angle to N Male Right Angle Cable Using RG225 Coax from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using RG225 Coax PE34222

URL: https://www.pasternack.com/n-male-n-male-rg225u-cable-assembly-pe34222-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
