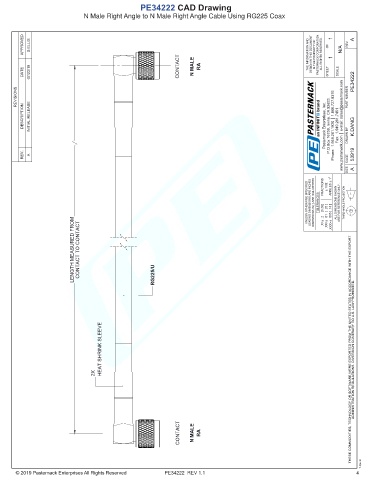

PE34222 CAD Drawing
N Male Right Angle to N Male Right Angle Cable Using RG225 Coax

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 07/23/19 CONTACT N MALE RA SHEET OF SCALE PE34222

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM CONTACT TO CONTACT RG225/U

HEAT SHRINK SLEEVE THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

2X

CONTACT N MALE RA Pasternack does not make -

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE34222 REV 1.1 4
