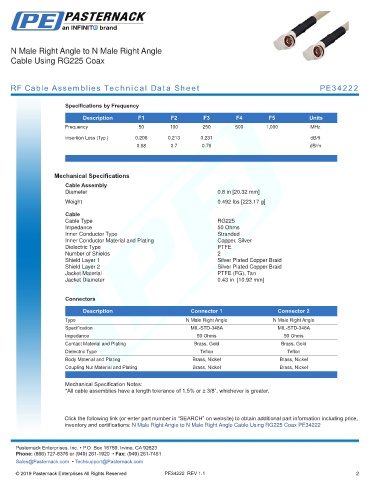

N Male Right Angle to N Male Right Angle
Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34222

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Typ.) 0.206 0.213 0.231 dB/ft
0.68 0.7 0.76 dB/m

.

Mechanical Specifications

Cable Assembly
Diameter 0.8 in [20.32 mm]
.
Weight 0.492 lbs [223.17 g]
Cable
Cable Type RG225
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material PTFE (FG), Tan
Jacket Diameter 0.43 in [10.92 mm]
.

Connectors
Description Connector 1 Connector 2
Type N Male Right Angle N Male Right Angle
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using RG225 Coax PE34222
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34222 REV 1.1 2
