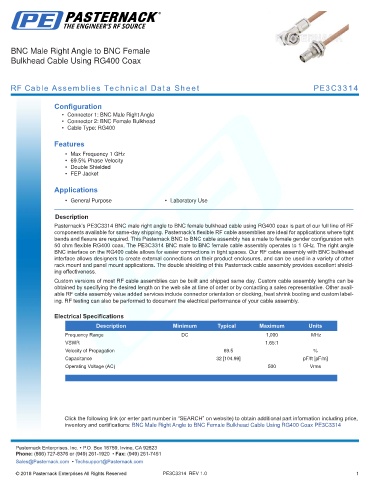

Page 449 - BNC to N RF Cable Assembly Datasheets

BNC Male Right Angle to BNC Female
Bulkhead Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C3314

Configuration
• Connector 1: BNC Male Right Angle
• Connector 2: BNC Female Bulkhead
• Cable Type: RG400

Features
• Max Frequency 1 GHz
• 69.5% Phase Velocity
• Double Shielded
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3314 BNC male right angle to BNC female bulkhead cable using RG400 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack BNC to BNC cable assembly has a male to female gender configuration with
50 ohm flexible RG400 coax. The PE3C3314 BNC male to BNC female cable assembly operates to 1 GHz. The right angle
BNC interface on the RG400 cable allows for easier connections in tight spaces. Our RF cable assembly with BNC bulkhead
interface allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications. The double shielding of this Pasternack cable assembly provides excellent shield-
ing effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.65:1
Velocity of Propagation 69.5 %
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle to BNC Female Bulkhead Cable Using RG400 Coax PE3C3314
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3314 REV 1.0 1
