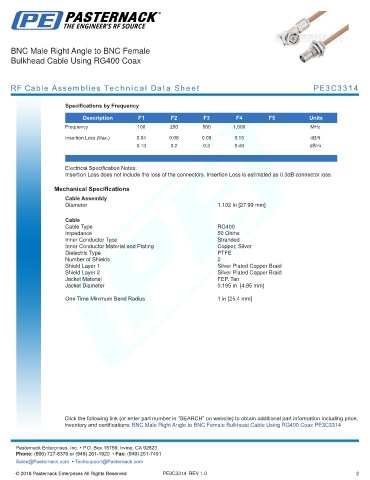

BNC Male Right Angle to BNC Female
Bulkhead Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C3314

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 100 250 500 1,000 MHz
Insertion Loss (Max.) 0.04 0.06 0.09 0.15 dB/ft
0.13 0.2 0.3 0.49 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.3dB connector loss.

Mechanical Specifications
Cable Assembly
Diameter 1.102 in [27.99 mm]
.
Cable
Cable Type RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle to BNC Female Bulkhead Cable Using RG400 Coax PE3C3314
-
