BNC Male Right Angle to BNC Female
Bulkhead Cable Using RG400 Coax

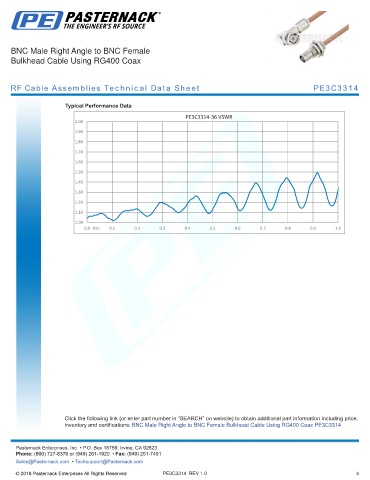

RF Cable Assemblies Technical Data Sheet PE3C3314

Typical Performance Data
PE3C3314-36 VSWR
2.00
1.90

1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle to BNC Female Bulkhead Cable Using RG400 Coax PE3C3314
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3314 REV 1.0 4
