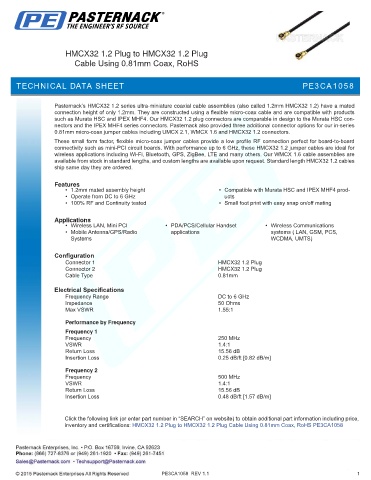

HMCX32 1.2 Plug to HMCX32 1.2 Plug
Cable Using 0.81mm Coax, RoHS

TECHNICAL D PE3CA1058
TECHNICAL DATA SHEETATA SHEET

Pasternack’s HMCX32 1.2 series ultra-miniature coaxial cable assemblies (also called 1.2mm HMCX32 1.2) have a mated
connection height of only 1.2mm. They are constructed using a flexible micro-coax cable and are compatible with products
such as Murata HSC and IPEX MHF4. Our HMCX32 1.2 plug connectors are comparable in design to the Murata HSC con-
nectors and the IPEX MHF4 series connectors. Pasternack also provided three additional connector options for our in-series
0.81mm micro-coax jumper cables including UMCX 2.1, WMCX 1.6 and HMCX32 1.2 connectors.
These small form factor, flexible micro-coax jumper cables provide a low profile RF connection perfect for board-to-board
connectivity such as mini-PCI circuit boards. With performance up to 6 GHz, these HMCX32 1.2 jumper cables are ideal for
wireless applications including Wi-Fi, Bluetooth, GPS, ZigBee, LTE and many others. Our WMCX 1.6 cable assemblies are
available from stock in standard lengths, and custom lengths are available upon request. Standard length HMCX32 1.2 cables
ship same day they are ordered.

Features
• 1.2mm mated assembly height • Compatible with Murata HSC and IPEX MHF4 prod-
• Operate from DC to 6 GHz ucts
• 100% RF and Continuity tested • Small foot print with easy snap on/off mating

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems ( LAN, GSM, PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 HMCX32 1.2 Plug
Connector 2 HMCX32 1.2 Plug
Cable Type 0.81mm

Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Max VSWR 1.55:1

Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.25 dB/ft [0.82 dB/m]

Frequency 2
Frequency 500 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.48 dB/ft [1.57 dB/m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HMCX32 1.2 Plug to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS PE3CA1058

PE3CA1058 REV 1.1 1
