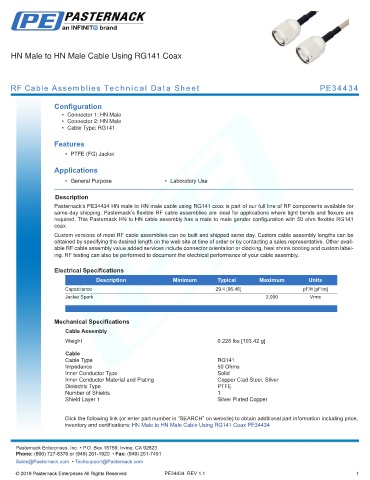

HN Male to HN Male Cable Using RG141 Coax

RF Cable Assemblies Technical Data Sheet PE34434

Configuration
• Connector 1: HN Male
• Connector 2: HN Male
• Cable Type: RG141

Features
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34434 HN male to HN male cable using RG141 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack HN to HN cable assembly has a male to male gender configuration with 50 ohm flexible RG141
coax.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Capacitance 29.4 [96.46] pF/ft [pF/m]
Jacket Spark 2,000 Vrms
.

Mechanical Specifications
Cable Assembly
.
Weight 0.228 lbs [103.42 g]
Cable
Cable Type RG141
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to HN Male Cable Using RG141 Coax PE34434
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34434 REV 1.1 1
