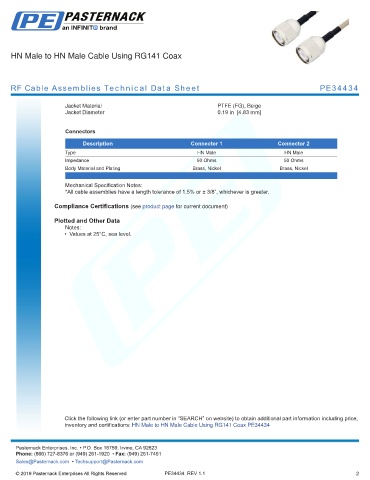

HN Male to HN Male Cable Using RG141 Coax
RF Cable Assemblies Technical Data Sheet PE34434
Jacket Material PTFE (FG), Beige
Jacket Diameter 0.19 in [4.83 mm]
.
Connectors
Description Connector 1 Connector 2
Type HN Male HN Male
Impedance 50 Ohms 50 Ohms
Body Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to HN Male Cable Using RG141 Coax PE34434
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE34434 REV 1.1 2
